Certified Wrist Joint External Fixators & Upper Limb Fixation Systems
Explore our CDSCO-approved and ISO-compliant upper extremity external fixation systems. Engineered specifically for complex distal radius intra-articular fractures, joint distraction, and soft tissue management, our systems are available for immediate export and B2B hospital supply across Melbourne and Victoria.

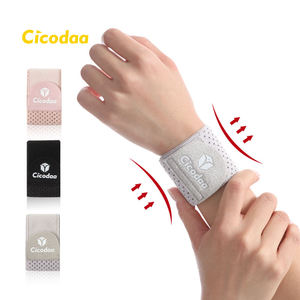

Unisex Sports Breathable Nylon Wrist Support Guard Tendon Sheath Fixed Joint
Send an Inquiry

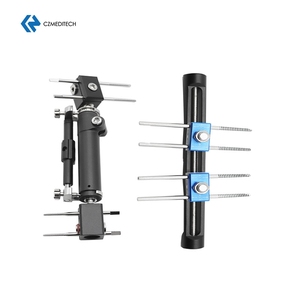

Orthopedic External Fixator for Upper Limb Wrist Hand Finger Fracture Fixation
Send an Inquiry
High Quality Unilateral Frame Orthopedic External Fixation Device for Elbow Wrist Joint
Send an Inquiry

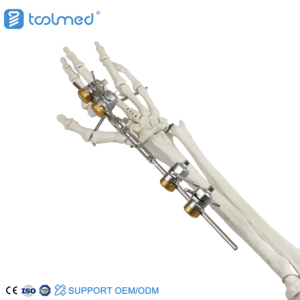

Wrist Joint External Fixator Orthopedic Wrist Joint Trauma Fracture External Fixation Surgical Fixator System
Send an Inquiry

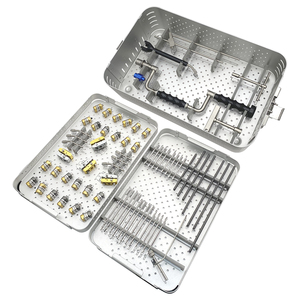

Upper Limb External Fixator Orthopedic Surgical Fixation Set for Radius Stryker Multi-Joint Type Forearm Wrist External Fixator
Send an Inquiry

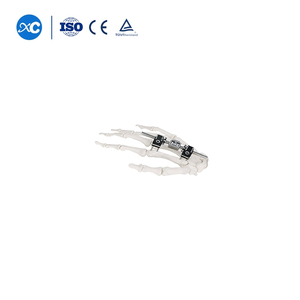

Professional Of-Distal Radius Fixator B Wrist Joints Orthopedic Bone External Fixator
Send an Inquiry

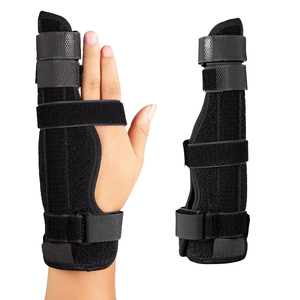

Aluminum Plate Supported Silicone Wrist Fixator Adjustable Splint Wrist Guard for Sprain Fracture Strain Recovery Joint Sheath
Send an Inquiry

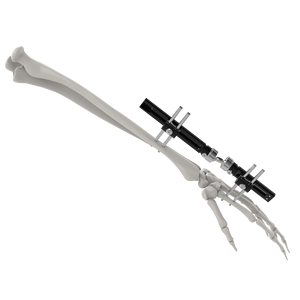

CANWELL Wrist External Fixator Small Bones Fracture Fixation Mini External Fixator Orthopedic Implant Phalanges and Metacarpals
Send an InquiryExecutive Whitepaper: Sourcing Wrist External Fixators for Melbourne’s Healthcare Sector
The management of complex upper limb trauma—specifically intra-articular distal radius fractures (AO/OTA Type C3), open radiocarpal dislocations, and severe soft-tissue compromised wrist injuries—presents unique clinical challenges for trauma surgeons across the Greater Melbourne area. As major tertiary hospitals such as The Alfred, The Royal Melbourne Hospital, and St Vincent's Hospital manage high volumes of major trauma, the demand for high-rigidity, intraoperatively adaptable external fixation hardware has evolved significantly.
This technical procurement whitepaper evaluates the biomechanical principles, material science criteria, and global supply chain dynamics involved in importing high-precision wrist joint external fixators from ISO 13485-certified medical device manufacturers into the Australian healthcare market. With procurement teams under mounting pressure to balance cost efficiency under HealthShare Victoria (HSV) framework guidelines with stringent clinical efficacy, direct-from-factory sourcing partnerships with established global manufacturers like Uteshiya Medicare (Kaisen Medical Care) provide a competitive edge.
Biomechanical Design Criteria & Technical Specifications
External fixation of the radiocarpal joint relies on the principle of ligamentotaxis—utilizing surrounding intact soft tissues and capsuloligamentous structures to pull bone fragments into anatomical alignment. To prevent secondary fracture displacement while maintaining pin-site integrity, external fixator frames must meet precise mechanical performance benchmarks.
Unilateral Ball-Joint Kinematics
Features a central multi-axial swivel head allowing 360-degree rotation and 45-degree angular distraction, enabling three-dimensional anatomical reduction without disassembling the primary rod structure.
Self-Tapping Apex Schanz Pins
Available in 2.5mm, 3.0mm, and 4.0mm outer diameters crafted from implant-grade Titanium (Ti-6Al-4V ELI) or 316L Stainless Steel, featuring thread designs that maximize cortical purchase while minimizing radial thermal necrosis.
Radiolucent Carbon Composite Rods
High-tensile PEEK and carbon fiber connecting bars offer complete radiolucency under C-arm fluoroscopy, enabling unobstructed intraoperative imaging of the joint surface during fragment reduction.
Material Metallurgy & Biomechanical Property Matrix
| Mechanical / Material Parameter | Ti-6Al-4V ELI (Grade 5 ASTM F136) | 316L Surgical Stainless Steel (ASTM F138) | Carbon Fiber Composite (Radiolucent) |
|---|---|---|---|
| Tensile Strength (MPa) | 860 - 960 MPa | 620 - 780 MPa | 1,500 - 1,800 MPa |
| Modulus of Elasticity (GPa) | 110 GPa (Closer to human bone) | 200 GPa (Ultra-Rigid) | 130 - 150 GPa |
| MRI & Radiographic Compatibility | Minimal Artifact / Conditional 3T | High Scattering Artifact | 100% Radiolucent (Zero Artifact) |
| Corrosion & Biocompatibility | Superior TiO2 Passivation Coating | Standard Passivated Oxide Layer | Inert / Non-Reactive |
| Clinical Indication Focus | Long-Term External/Internal Hybrid Fixation | Acute Emergency / Bridge Stabilization | Radiolucent Intraoperative Fluoroscopy |
Manufacturing Excellence & Factory Regulatory Credentials
As a dedicated medical device manufacturer, Uteshiya Medicare maintains full vertical integration across all production phases. Operating from CDSCO-inspected facilities equipped with state-of-the-art 5-axis CNC Swiss automatic lathes, multi-axis wire EDM machines, and automated cleanroom packaging lines, every wrist external fixator system undergoes rigorous dimensional inspection and fatigue testing.
ISO Class 7 Cleanroom & Sterile Facility
Our manufacturing unit integrates dedicated ISO Class 7 cleanrooms for final cleaning, assembly, and double-blister sterile packaging. External fixator kits can be delivered pre-sterilized by Gamma Irradiation or ETO (Ethylene Oxide) or supplied non-sterile for hospital autoclave sterilization cycles.
- 100% Bioburden and endotoxin testing per ISO 11737
- Valid Sterility Assurance Level (SAL) of 10^-6
- Comprehensive batch-level sterilization documentation
Traceability & Quality Assurance Systems
In compliance with global medical device regulations (including Australian TGA Essential Principles and ISO 13485:2016 standard), each clamp, pin, and connecting rod is etched with a permanent laser Unique Device Identifier (UDI) and batch number.
- Full raw material mill certificate traceability (3.1 certificates)
- Coordinate Measuring Machine (CMM) dimensional verification
- Torsion, bending, and axial loading fatigue testing
Localized Application Scenarios & Procurement Trends in Melbourne
The clinical utilization of wrist external fixators across Melbourne’s health corridors—spanning major urban hospital networks in Parkville, Clayton, and Frankston to regional Victorian trauma centers—is shaped by distinct localized factors:
Major Industrial & Construction Trauma
With ongoing infrastructure and commercial building projects across Greater Melbourne, industrial hand and wrist injuries involving heavy crush machinery are frequent. Unilateral external fixators allow rapid stabilization of high-energy comminuted fractures with severe soft-tissue compromise prior to definitive flap reconstruction.
Active Sports & Cycling Injuries
Melbourne’s intense recreational cycling culture and Australian Rules Football (AFL) participation lead to significant high-impact falls on an outstretched hand (FOOSH). Mini external fixators and hybrid distal radius frames provide micro-adjustable distraction for intra-articular carpal fracture-dislocations.
Geriatric Osteoporotic Fracture Care
In Victoria's aging demographic, low-energy fragility fractures of the distal radius often present with extreme bone loss. External fixators combined with minimal K-wire augmentation provide stable bridge fixation without the hardware failure risks associated with open plating in severely osteopenic bone.
B2B Sourcing Strategy & Logistics Infrastructure for Victorian Buyers
Procurement directors and medical device importers supplying Melbourne hospitals require uninterrupted, resilient supply chains. Sourcing directly from Uteshiya Medicare provides strategic advantages that streamline hospital inventory management:
Optimized Air Cargo & Sea Freight Logistics
Situated near international freight hubs, Uteshiya Medicare maintains established express logistics partnerships delivering standard orders into Melbourne Airport (Tullamarine) within 5–7 business days. Bulk container shipments arrive seamlessly via the Port of Melbourne, supported by full customs documentation, HS coding, and certificates of origin.
OEM / ODM & White-Label Manufacturing
For Australian medical distributors seeking to establish proprietary brand equity, we provide complete OEM/ODM manufacturing services. From custom instrument tray design and specialized pin threading to private-label sterile blister packaging, our engineering team collaborates closely with your regulatory and brand teams.
Frequently Asked Questions (FAQ) for Melbourne Buyers
Common technical, regulatory, and commercial inquiries from Australian healthcare procurement officers and orthopedic distributors:
Partner with a Trusted Global Orthopedic Implants Manufacturer
Request comprehensive product catalogs, CAD drawings, technical test reports, and direct factory quotation pricing for wrist joint external fixator systems serving Melbourne and international healthcare markets.
